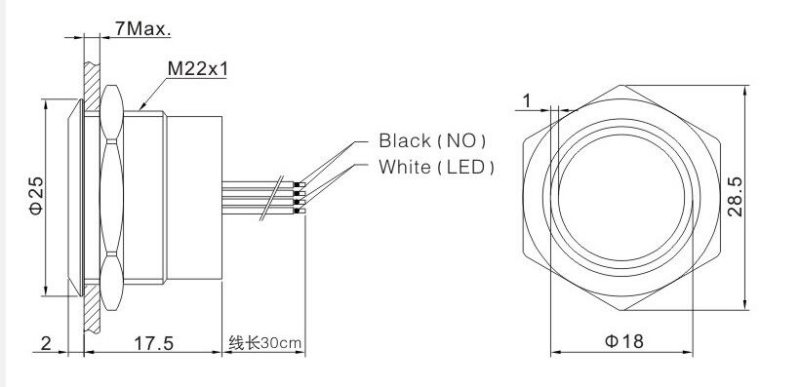

| Mounting Hole: | Φ22MM(16mm.19mm Can be choose) |
| Switch Rating: | 1A/24VDC |
| Contact Configuration: | 1NO |
| Operation Type: | Self-locking (Momentary pls contact us) |
| Operation Travel: | 0.5mm |
| Terminal Type: | wire leading 300mm |
| Switching: | A(Single-break contact) |
| Panel Thickness: | 1~6mm |
| Torque: | About 0.6Nm |
| Mechanical Life: | 500,000 cycles |
| Electrical Life: | 500,000 cycles |
| Button: | Stainless steel |
| Body: | Stainless steel |
| Base: | PBT |
| Operating Force: | About 3.8N(16mm),7.8N(19mm),5N(22mm) |
| IP Degree: | IP65,IK05 |
