High Voltage Electrombile And Charging Pile 300A Dc Contactor High Power Voltagefor Charging Equipment SEV300AH SEV300BH ROHS CE

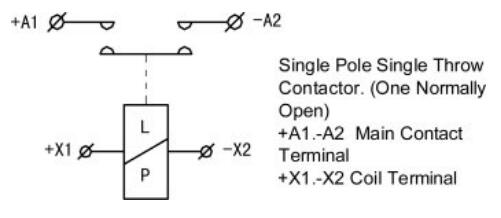

SEV300AH  circuit  structure  is normally  open,    SEV300BH  circuit  structure  is normally  closed!!
Product introduction
FEATURES:
Suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air conditioning, communication power, UPS, power and other electrical control circuit of the switch control, with small.

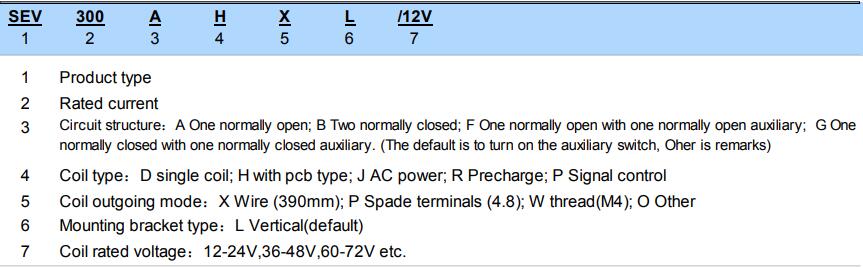

MODEL IMPLICATION:   1 USES:

The utility model has the advantages that the utility model is provided with a normally open contact or a normally closed contact , which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems, road traf.

12345612

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: HV DC Contactor SEV300AH/24V 100pcs, indicating the load rated current 300

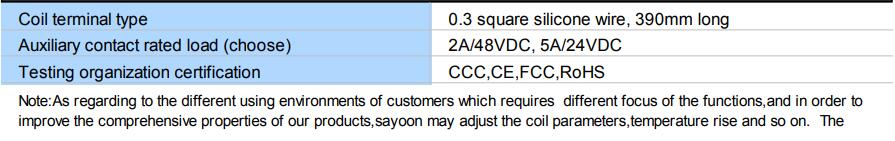

certification:

123
