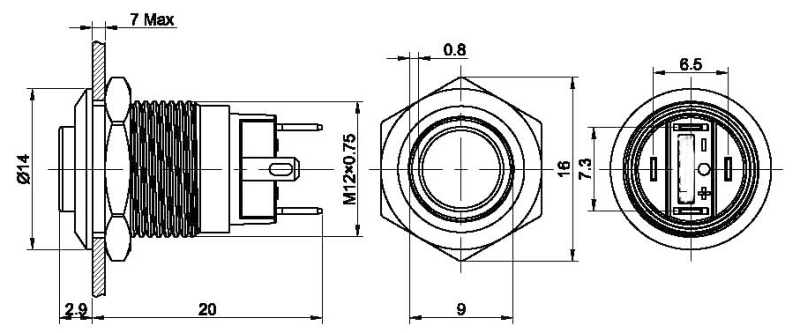

ELEWIND raised button 12mm metal push button switch with light(PM121H-10E/J/R/12V/S)

1   Part number:PM121H-10E/J/R/12V/S Install diameter:16mm Switch rating: 2A/36VDC Shape: Raised head(Flat head can be choose) Function: Momentary (1NO) Terminal: 4 Pin terminal Crust material: stainless steel or black aluminium LED color: Ring illuminated red color,blue,Green,Yellow,White,Orange Voltage:  from 2.8V to 48V IP rating: IP65 Temperature: - 40 to 75 Degree
