ELEWIND 22mm Silver color aluminum anodized Stainless steel piezo push switch (PS223Z10YNT1,Rohs,CE)

1

ELEWIND Silver aluminum anodized piezo touch switch (22mm,PS223Z10YNT1,Rohs,CE)

Part number: PS223Z10YNT1

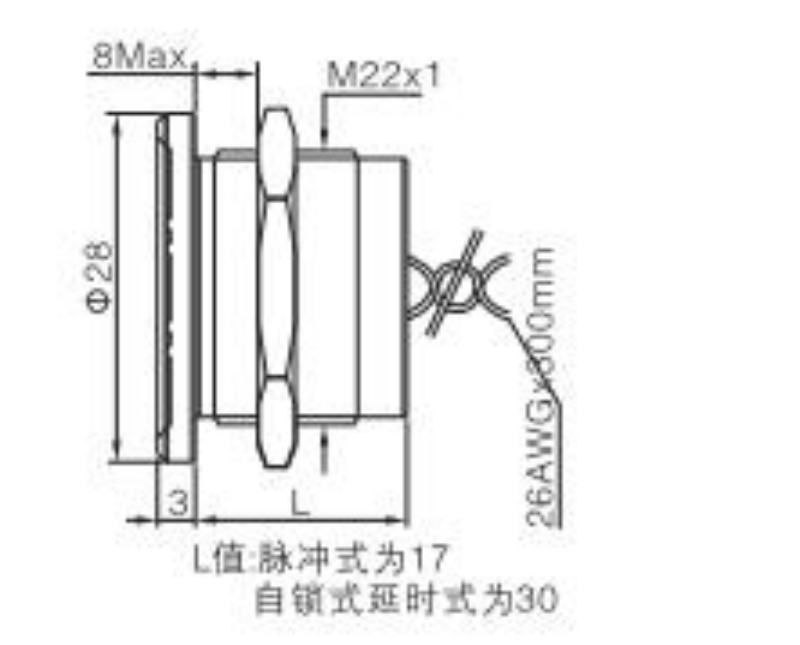

Install diameter : 22mm hole diameter Rated current : 200mA Rated voltage : 24VAC/DC Crust Material : Aluminium or  Stainless steel Crust color: Silver(Other color: Red,black,Green,blue,gold) Function: Momentary NO IP rated : IP68 Life : 5 Million Standard : Rohs, CE Operation force: 2 to 6 (N) Operation temperature: - 40 to +75 degree
Wire connection: Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
