19mm 3 three led color ring illuminated Black aluminium or Stainless steel push button switch(PM192F-11E/J/RGB/12V/S )

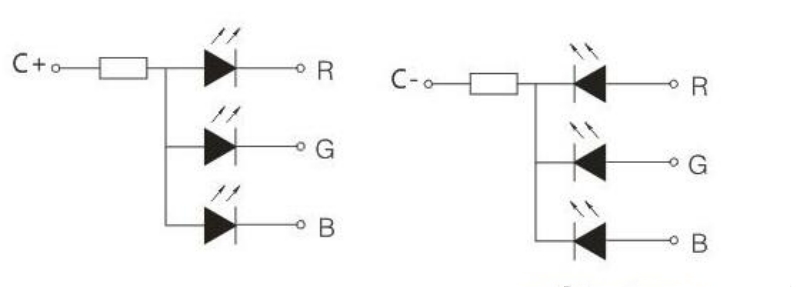

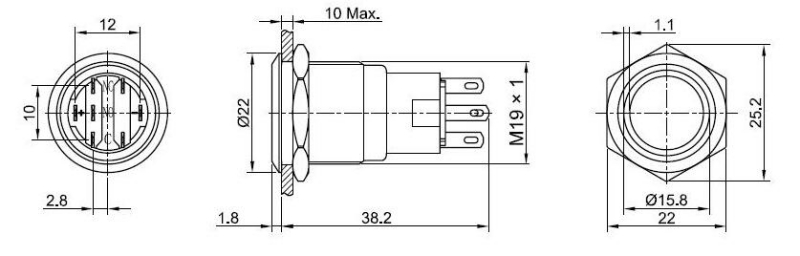

1 1 Part number:ELEWIND 19mm 3 led color ring illuminated push button switch(PM192F-11E/J/RGB/12V/S 4pins for led) Install diameter:19mm Switch rating: 3A/250V Shape: Flat head Function: Momentary or latching (1NO1NC) Terminal: 7 Pin terminal Crust material: stainless steel or  Black aluminum LED color: Red - Green - Blue, 4pins for led, the common pin is anode or cathode Voltage: from 6V to 48V IP rating: IP65 Temperature: - 40 to 75 Degree
