16MM metal Stainless steel 1NO1NC 2NO2NC momentary latching push button switch with power illuminated symbol PM164F-11ET/S

1

Part number:PM164F-11ET/S

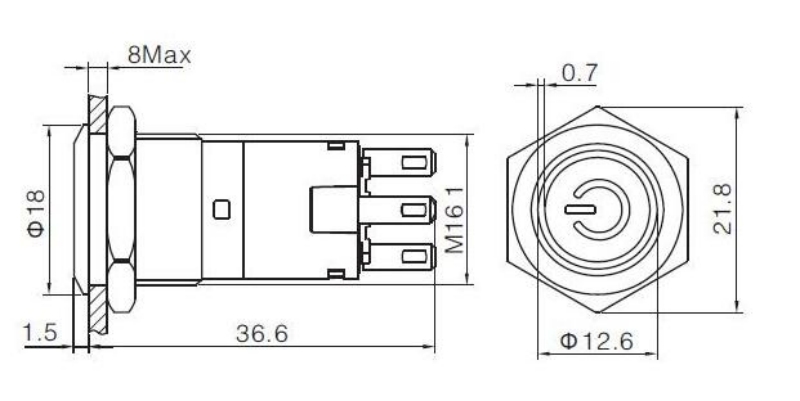

Install diameter: 16MM

Shape: Flat head

Function: Momentary or  latching

Contact  Configuration： 1NO1NC or 2NO2NC

power illuminated symbol color:  red blue yellow  green white

voltage: 1.8V-220V

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP40

Temperature: - 25 to 55 Degree
