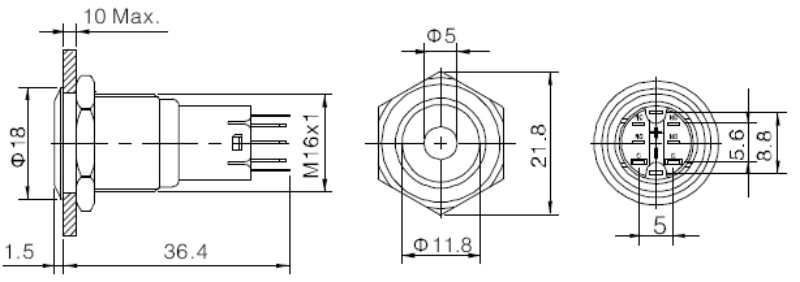

16mm Flat head Dot illuminated Momentary Latching (1NO1NC) push button switch(PM162F-11D/G/12V/A,CE,ROHS)

1   Part number: PM162F-11D/G/12V/A   Install diameter:16mm Switch rating: 3A/250VAC Shape: Flat head Function: Momentary (1NO1NC) Led type: Dot illuminated Color: Green(Other color can be choose:Blue,Yellow,Green,White,Orange) Voltage: from 1.8V to 250V Terminal: 5 Pin terminal Crust material: Black aluminium Temperature: - 40 to 75 Degree
