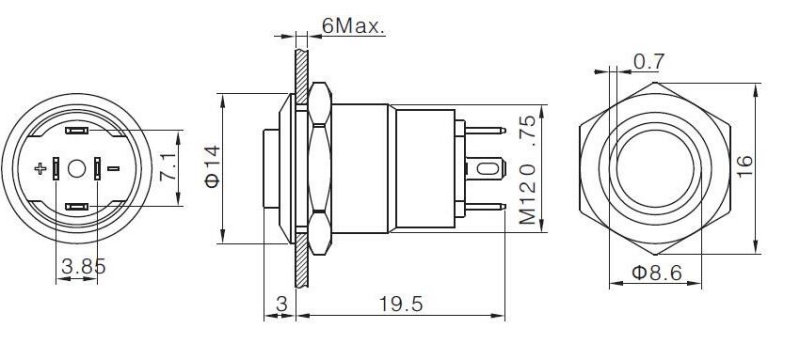

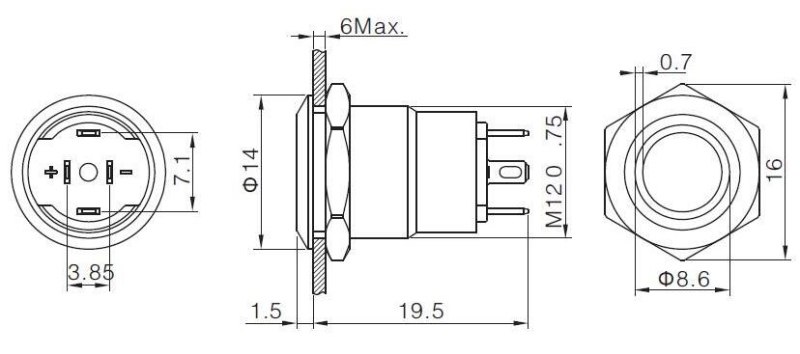

12MM new metal Stainless steel momentary or latching push button switch with ring LED light PM125F(H)-10E/S

1 2

Part number:PM125F-11E/S   PM125H-11E/S

Install diameter:12mm

Shape: Flat head or high head

function:   10NO current： 2A/36V DC

LED ring light  Color: red, green, yellow, blue, white

Function: Momentary (1NO1NC) or  latching (1NO1NC)

Terminal: Pin terminal

Crust material: Stainless steel

IP rating: IP65

Temperature: - 25 to 55 Degree
